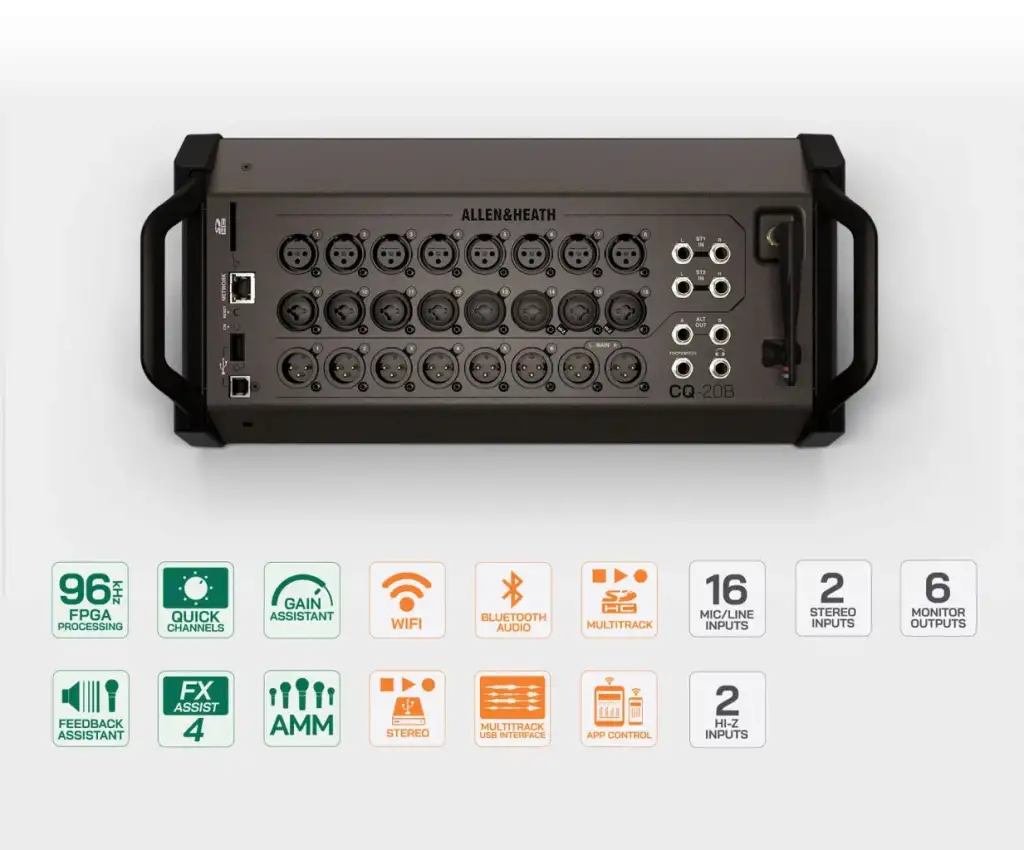

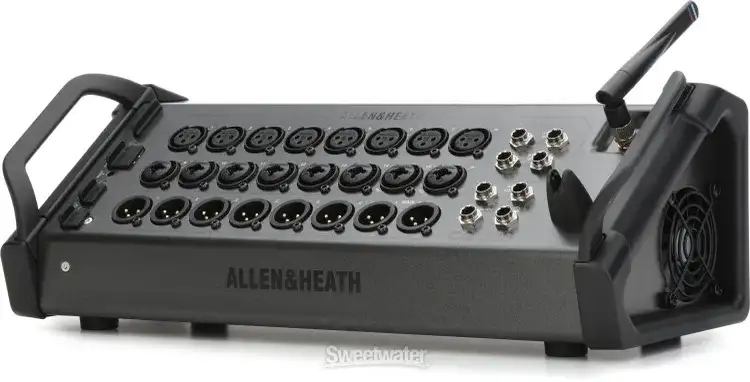

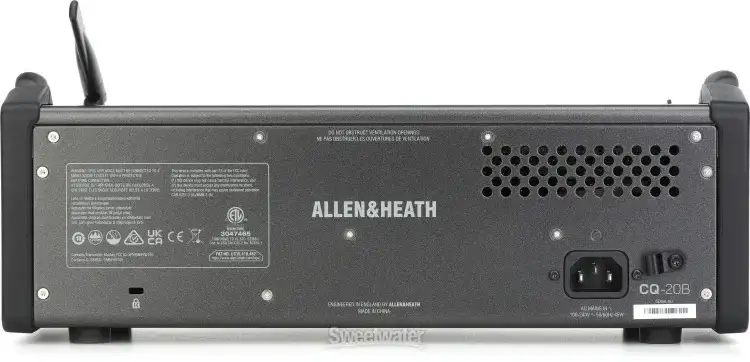

About A&H CQ20B
20ch digital mixer, Wi-Fi, Bluetooth, SD/USB recording, USB interface, 16 mic/line (2 Hi-Z), 4FX, 6 Aux
Tech Specs
- Type:Digital Mixer
- Channels:20 (16 x mono, 2 x stereo)
- Inputs - Mic Preamps:8 x XLR-1/4" Combo, 8 x XLR
- Phantom Power:16 Channels
- Inputs - Other:4 x 1/4" TRS
- Outputs - Main:2 x XLR
- Outputs - Direct:6 x XLR (monitors)
- Outputs - Other:1 x 1/4" (assingable alt)
- Data I/O:1 x RJ45
- USB:1 x Type B, 1 x Type A
- Bluetooth:Stereo Input
- Computer Connectivity:USB (24 x 24), Ethernet, 2.4G/5G AC Wi-Fi
- Headphones:1 x 1/4" TRS
- Effects:Reverbs, Delays, Modulators
- Signal Processing:96kHz FPGA
- Features:Feedback Assistant
- Software:CQ MixPad App, CQ4You App
- Rackmountable:Yes (kit sold separately)
- Height:5.3"
- Depth:14.7"
- Width:6.1"
- Weight:5.8 lbs
- Manufacturer Part Number:AH-CQ20
