A&H QU7

About A&H QU7

A&H QU7

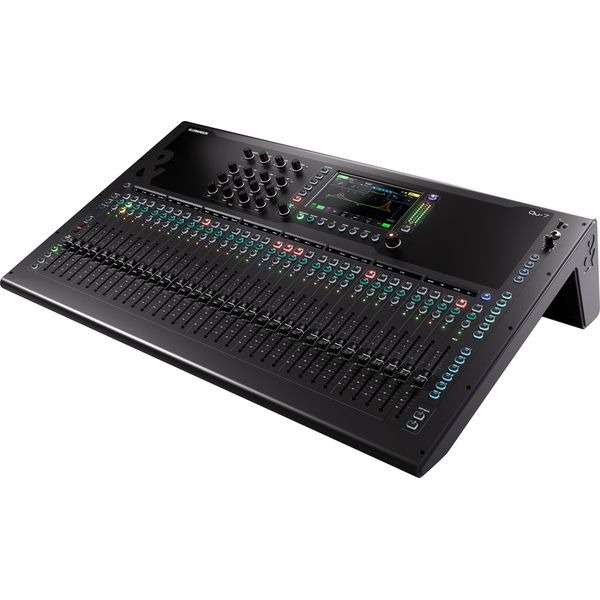

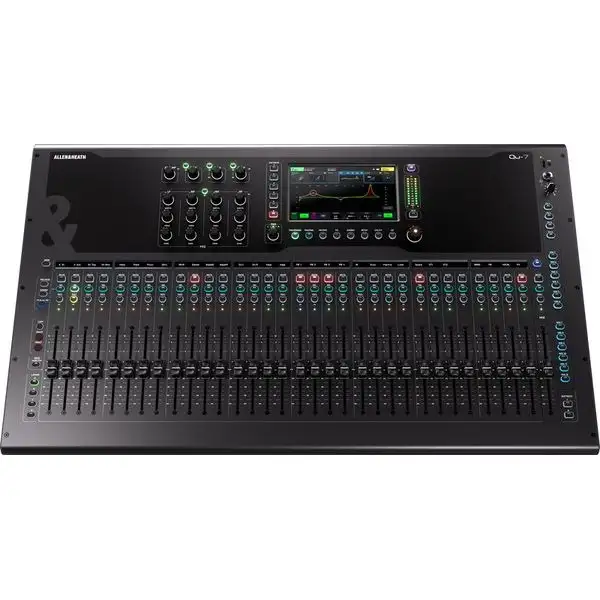

Qu-7 digital mixing console with 32 faders

Allen & Heath Qu-7 Features:

• Next-gen, 32-channel, 24-bit/96kHz digital mixer blending the Qu-32’s svelte form factor with advanced XCVI processing
• 6 Multi-FX engines, each with dedicated returns, lend a studio-quality sheen to your mixes
• Versatile Everything I/O connectivity ensures maximum flexibility and expandability
• Vibrant 7-in. capacitive touchscreen offers easy access to channel strips, FX, and more
• Vivid channel strip displays, 4 user-definable layers, and 8 programmable SoftKeys put intuitive control at your fingertips
• 36 mix inputs, including 32 mono channels — linkable for stereo operation — and 2 dedicated stereo channels
• 32 premium digitally controlled mic preamps, engineered for pristine transparency, ultra-low noise, and musical warmth
• 33 smooth 100mm motorized faders and a thoughtfully designed interface provide intuitive hands-on control
• USB-C audio interface and SD card slot provide you with up to 32 channels of recording and playback
• Fully rackmountable and built to handle the demands of modern live sound production

Tech Specs

• Type:Digital Mixer
• Channels:32

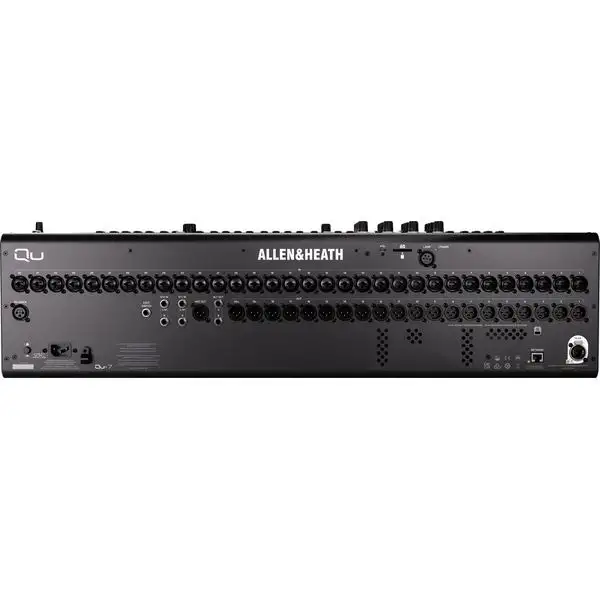

• Inputs – Mic Preamps:32 x XLR (mic/line)
• Phantom Power:24 Channels
• Inputs – Other:4 x 1/4″ (2 Stereo In)
• Outputs – Main:2 x XLR (left, right)
• Outputs – Direct:18 x XLR
• Outputs – Other:2 x 1/4″ (alt)
• Outputs – Digital:1 x XLR (AES/EBU)
• Talkback:1 x XLR
• Data I/O:1 x EtherCon (SLink), 1 x RJ45
• Headphones:1 x 1/4″
• USB:1 x USB-A, 1 x USB-C
• Computer Connectivity:USB-C (32×32)
• Remote:1 x Footswitch
• Faders:33 x 100m Motorized Faders
• A/D Resolution:24-bit/96kHz
• EQ Bands:4-band parametric
• Features:96kHz FPGA Core
• Screen:7″ Capacitive Touchscreen
• Storage:SD card slot
• Software:Remote control via free apps – Windows/MacOS/iOS/Android
• Rackmountable:Yes (kit sold separately)
• Power Source:IEC Main Connection w/Worldwide PSU
• Height:8.3″
• Depth:18.7″
• Width:31.5″
• Weight:36.8 lbs.
