About A&H QU7D
A&H QU7D

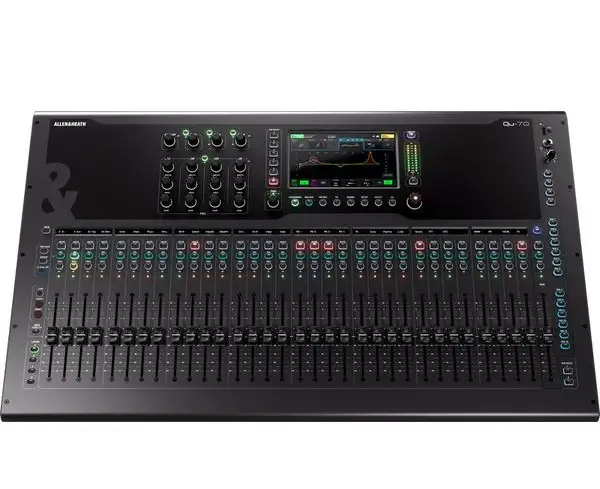

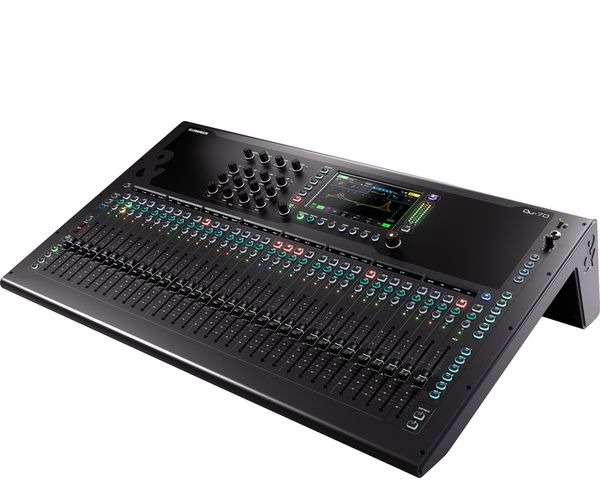

Qu-7 digital mixing console with 32 faders and 16x16 Dante channels
Allen & Heath Qu-7D Features:
- Next-gen, 38-in/24-out, 96kHz digital mixer blending the Qu-32’s svelte form factor with advanced XCVI processing
- 6 Multi-FX engines, each with dedicated returns, lend a studio-quality sheen to your mixes
- Versatile Everything I/O connectivity ensures maximum flexibility and expandability
- Vibrant 7-in. capacitive touchscreen offers easy access to channel strips, FX, and more
- Vivid channel strip displays, 4 user-definable layers, and 8 programmable SoftKeys put intuitive control at your fingertips
- 36 mix inputs, including 32 mono channels — linkable for stereo operation — and 2 dedicated stereo channels
- 32 premium digitally controlled mic preamps, engineered for pristine transparency, ultra-low noise, and musical warmth
- 33 smooth 100mm motorized faders and a thoughtfully designed interface provide intuitive hands-on control
- USB-C audio interface and SD card slot provide you with up to 32 channels of recording and playback
- 16-in/16-out Dante interface gives you seamless integration into AoIP networks
- Built to handle the demands of modern live sound production

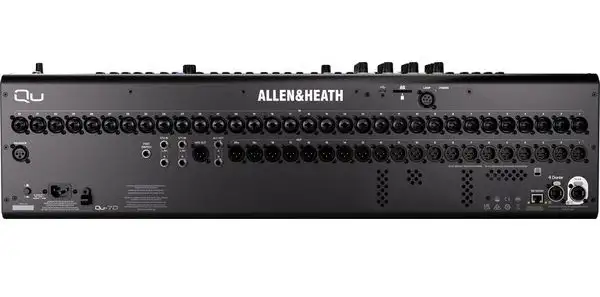

Tech Specs
- Type:Digital Mixer
- Channels:38
- Inputs – Mic Preamps:32 x XLR (mic/line)
- Mic Inputs:32
- Phantom Power:32 Channels
- Inputs – Other:4 x 1/4″ (2 Stereo In)
- Outputs – Main:2 x XLR (left, right)
- Outputs – Direct:18 x XLR
- Outputs – Other:2 x 1/4″ (alt)
- Outputs – Digital:1 x XLR (AES/EBU)
- Talkback:1 x XLR
- Data I/O:1 x EtherCon (SLink), 1 x EtherCon (Dante), 1 x RJ45
- Headphones:1 x 1/4″
- USB:1 x USB-A, 1 x USB-C
- Computer Connectivity:USB-C (32×32)
- Remote:1 x Footswitch
- Faders:33 x 100m Motorized Faders
- A/D Resolution:96kHz
- EQ Bands:4-band parametric
- Features:96kHz FPGA Core
- Screen:7″ Capacitive Touchscreen
- Storage:SD card slot
- Software:Remote control via free apps – Windows/MacOS/iOS/Android
- Power Source:IEC Main Connection w/Worldwide PSU
- Height:8.3″
- Depth:18.7″
- Width:31.5″
- Weight:36.8 lbs.
