Active Point Source in Goa

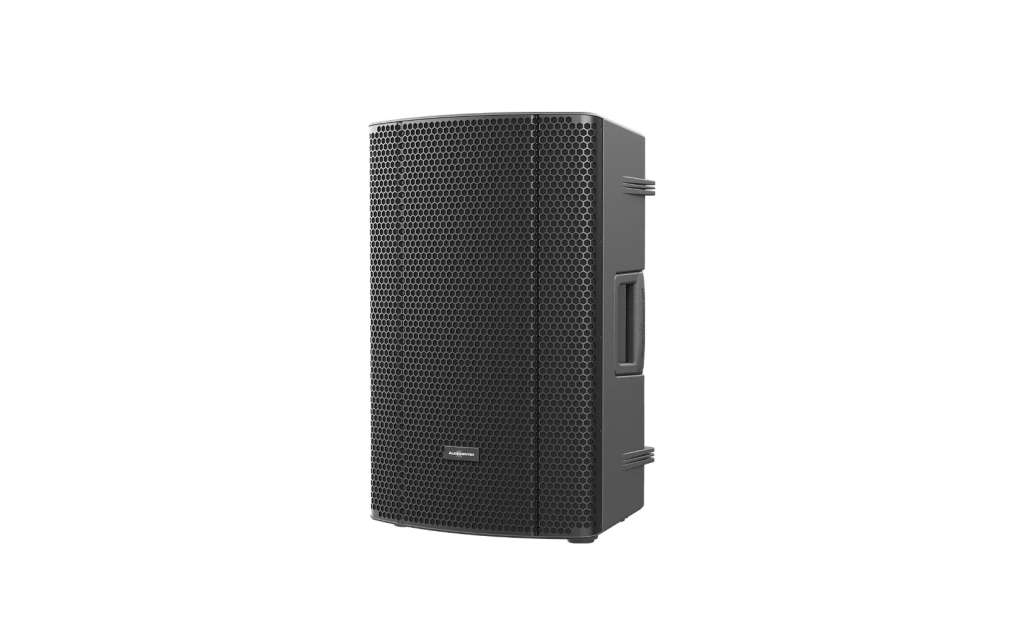

AUDIOCENTER MA15+[PAIR]
About AUDIOCENTER MA15+[PAIR]
MA+ SERIES (NEW) FULL GRILL
15" Speaker + HF, Plastic Cabinet, 1600W DSP Controlled Active Loudspeaker
Equipped with Bluetooth and TWS (True Wireless Stereo) technology, the MA15+ enables convenient stereo wireless pairing, allowing users to enjoy stable, high – quality sound anytime, anywhere.
The MA15+ can be mounted on a tripod or suspended for use as a main PA speaker and is also suitable for stage monitoring.
Specifications
|
Type |
Portable Active DSP-controlled Loudspeaker |
|
Frequency Response(-10dB) |
45Hz-20kHz |
|
Horizontal Coverage |
90° |
|
Vertical Coverage |
60° |
|
Maximum Calculated SPL/1M (Continuous/Peak) |
128dB/ 134dB |
|
HF Driver |
Customized driver, 1.75” voice coil and 1.0”exit |
|
LF Driver |
Customized 15” driver, 3.0” voice coil |
|
DSP |
|
|
Processor |
48kHz signal sampling frequency |
|
Presets |
MUSIC，FLAT，SPEECH，W/SUB |
|
AMPLIFIER |
|
|
Amplifier Circuitry |
Class D |
|
Power (RMS standards) |
800W |
|
Peak Power |
1600W |
|
Frequency Response(1W 8Ω 2ch) |
20Hz-20kHz(±0.5dB) |
|
Intermodulation Distortion |
＜0.05% |
|
Total Harmonic Distortion |
＜0.05% |
|
Cooling System |
Cooling with fans, air convection |
|
Protection |
DC protection, short circuit protection,overheat protection, input overload protection, output overload protection,soft startup protection, overvoltage protection, undervoltage protection |
|
Signal Input |
Female XLR(Mono jack 6.35),3.5mm Jack Input, Wireless bluetooth |
|
Signal Output |
Male XLR mixed output or balanced output |
|
Power Input |
IEC power connector |
|
Working Voltage |
100-240V~ (±10%，50/60Hz） |
|
Power consumption (1/8 output power) |
64W |
|
CABINET |
|
|
Cabinet Material |
New polypropylene composite material |
|
Cabinet Color |
Black is the default color |
|
Grille |
Iron mesh |
|
Handles |
1 side,1 top |
|
Monitor Angle |
Symmetrical 45° monitor angle |
|
Hanging Hardwares |
M8 screw |
|
Pole Mount |
Base hole Φ35mm |
|
Speaker Dimension (W×H×D) |
432×661×387mm |
|
Carton Dimension (W×H×D) |
476x743x445mm |
|
Net Weight |
19.0kg |
|
Shipping Weight |
23.0kg |
