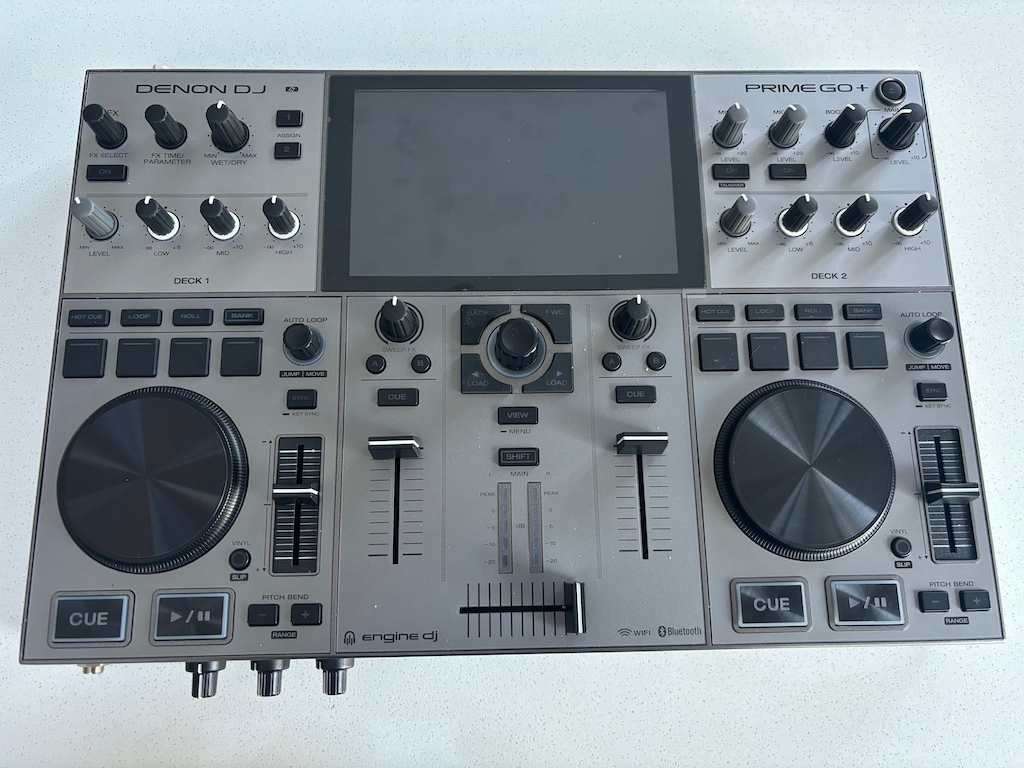

DENON PRIME GO+

About DENON PRIME GO+

• Audio
  • Frequency Response: 20 Hz - 20 kHz (+/- 1 dB)
  • Dynamic Range: > 109 dB (A-weighted)
  • Signal-to-Noise Ratio: > 92 dB (A-weighted)
  • Channel Separation: < -88 dB (1 kHz, unity)
  • Headroom:
    • Aux: > 15 dB
    • Mic Input: > 20 dB
    • Outputs: > 15 dB
    T.H.D.
    • Aux: < 0.01% (1 kHz, unity)
    • Microphone: < 0.02% (1 kHz, unity)

• Analog Input
  • Aux:
    • +15 dBV (maximum)
    • 0 dBV (unity)
  • Microphone:
    • -40 dBV (unity)
    • -54 dBV (minimum)

• Analog Output
  • Master, Balanced:
    • +18 dBu (maximum)
    • +4 dBu (unity)
    Master, Unbalanced:
    • +15 dBu (maximum)
    • 0 dBu (unity)
    Booth:
    • +18 dBu (maximum)
    • +4 dBu (unity)
    Headphone Output:
    • < 40 mW

• Connections
  • (2) XLR outputs (master left/right, balanced)
  • (1) RCA output pair (master left/right, unbalanced)
  • (2) 1/4" (6.35mm) outputs (booth left/right, balanced)
  • (2) 1/4" (6.35mm) outputs (booth left/right, balanced)
  • (1) 1/4" (6.35mm) stereo output (headphones)
  • (1) 1/8" (3.5mm) stereo output (headphones)
  • (1) RCA input pair (line-level, unbalanced)
  • (2) XLR + 1/4" (6.35mm) inputs
  • (1) USB ports (for USB drives)
  • (1) USB port (to computer)
  • (1) SD card slot
  • (1) Power adapter input

• Power
  • Connection: DC, Center Positive
  • Voltage: 19V 3.42A
  • Consumption: 30W maximum
  • Built-In Rechargeable Battery

• Dimensions and Weights
  • Product Only:
    • Imperial (in): 16.2” W, 10.8” D, 2.1” H
    • Metric (mm): 411 W, 274 D, 53 H
    • Weight (lbs): 8.11
    • Weight (Kg): 3.68
    Product in Box:
    • Imperial (in): 21.06” W, 15.35” D, 6.65” H
    • Metric (mm): 535 W, 390 D, 169 H
    • Weight (lbs): 11.27
    • Weight (Kg): 5.11
