MARANI MIR260A
₹ 32,500.00
₹ 44,000.00
Save
26%

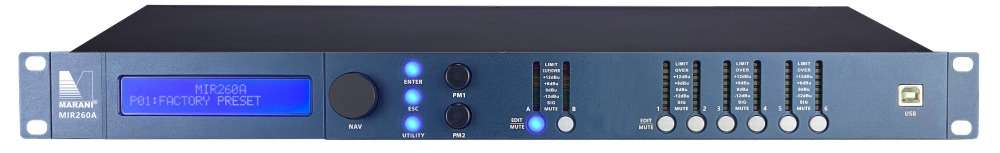

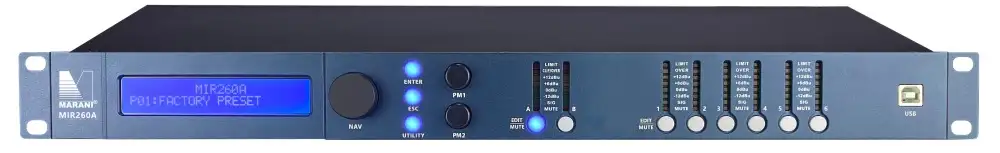

MARANI MIR260A 2 IN 6 OUT Professional Audio Processor
The machine runs at 96KHz sampling rate, the frequency response remains flat at 20-40Khz, the background noise is as low as -94dBu, and the maximum input level reaches +20dBu.
2. Full matrix mixing, any input channel can be sent to the output channel, and even several non-adjacent output channels can be superimposed and mixed to the physical output.
3. Each input and output channel is equipped with an RMS compressor, which can control the signal dynamics on the input channel or use it to shape the sound intensity. The newly designed extremely low distortion peak limiter can prevent sudden large dynamic signals from damaging the speaker unit and effectively guarantee the safety of the system.
4. Each channel is equipped with FIR filter up to 1024 Taps.
5. New MIR linear phase crossover filter: MIR linear phase filter is a new X-over filter, which has the shape of a classic filter (LR24/48) without any phase distortion and keeps the phase curve flat straight.
6. The machine is equipped with a standard network port, which can be directly connected to a PC through a network cable. The default DHCP automatically obtains an IP address and completes all connections with one click.
7. The new marshalling setting can control 32 processors at the same time, and can control gain, mute, PEQ and polarity uniformly, which increases the convenience of multi-machine debugging. 8. The input channel is equipped with a dynamic loudness booster, which can effectively enhance the sense of hearing.
9. Add plug-in, including 96kHz FIR filter with extended bandwidth, high-order signal generator and RTA spectrum analysis.
2. Full matrix mixing, any input channel can be sent to the output channel, and even several non-adjacent output channels can be superimposed and mixed to the physical output.
3. Each input and output channel is equipped with an RMS compressor, which can control the signal dynamics on the input channel or use it to shape the sound intensity. The newly designed extremely low distortion peak limiter can prevent sudden large dynamic signals from damaging the speaker unit and effectively guarantee the safety of the system.
4. Each channel is equipped with FIR filter up to 1024 Taps.
5. New MIR linear phase crossover filter: MIR linear phase filter is a new X-over filter, which has the shape of a classic filter (LR24/48) without any phase distortion and keeps the phase curve flat straight.
6. The machine is equipped with a standard network port, which can be directly connected to a PC through a network cable. The default DHCP automatically obtains an IP address and completes all connections with one click.
7. The new marshalling setting can control 32 processors at the same time, and can control gain, mute, PEQ and polarity uniformly, which increases the convenience of multi-machine debugging. 8. The input channel is equipped with a dynamic loudness booster, which can effectively enhance the sense of hearing.
9. Add plug-in, including 96kHz FIR filter with extended bandwidth, high-order signal generator and RTA spectrum analysis.
| Audio | |
| Input impedance | ＜10k Ohm balanced |
| Output impedance | ＜100R Impedance balanced |
| A/D dynamic range | 118dB |
| D/A dynamic range | 118dB |
| Maximum input level | +20dBu |
| Maximum output level | +18dBu |
| Total harmonic distortion | ≦0.003%(+4dBu 1kHz) |
| Frequency response | 20Hz~40kHz |
| Crosstalk | ≦-95dB |
| Signaltonoiseratio | ≧113dB (A weighting) |
| Noise floor | ≦-94dBu (A weighting) |
| Common Mode Rejection Ratio | 60dB |
| Number of analog input channels | 2 |
| Number of analog output channels | 6 |
| Rs485 control port | 2 |
| Network control port | 1 |
| DSP Processing | |
| Signal generator | white noise/pink noise, level range: -30dBu~+10dBu |
| nput & output gain | -18 dB ~ +12 dB, step accuracy is 0.1dB |
| Noise gate | Threshold range: -80dBu~-45dBu Start-up time: 1ms~1000ms; Release time: 1ms~1000ms |
| Dynamic loudness filter | Gain range: 0dB-10dB Start-up speed: fast/medium/slow |
| Parametric equalizer | Input channels up to 31 optional types of PEQ output channels up to 8 optional types of PEQ |
| Optional types include | Bell filter, 1st order high Shelf filter, 2nd order high Shelf filter Variable Q high Shelf filter, 1st order low Shelf filter, 2nd order low Shelf filter Variable Q low Shelf filter, 1st-order low-pass filter, 2nd-order low-pass filter Variable Q low pass filter, 1st order high pass filter, 2nd order high pass filter Variable Q high pass filter, band pass filter, notch filter 1st order allpass filter, 2nd order all-pass filter with variable Q value |
| The center frequency | adjustable within the frequency range of 20Hz~20kHz with a step accuracy of 1Hz |
| Q value/bandwidth | The Q value range of Bell filter is 0.4~128, the step is 0.01 The range of the Q value of the Chevron/high-pass/low-pass filter is: 0.1~5.1, and the step is 0.01 The value range of bandpass/notch filter Q is: 4~104, step is 1 |
| Equalizer gain range | -15dB～+15dB |
| IIR crossover filter | Butterworth slope: 6/12/18/24/36/48dB per octave Bessel slope: 12/24dB per octave Linkwitz-Riley slope: 12/24/36/48dB per octave NXF horn filter slope is 40/45/50/50/55/60/65/70/75dB per octave |
| MIR linear phase filter | Linkwitz-Riley: 24/48dB per octave；NXF: -40dB per octave |
| FIR crossover filter | type; high pass/low pass/band pass/external import Taps range: 256 ~ 512,slope range 21 ~ 120dB per octave Time window type: Rect / Sinc / Keiser /Hanning / Hamming / Blackman /Blackman-Harris/ Blackman-Nuttal / Nuttal/Keiser -Bessel/Sine |
| RMS compressor | Attack range: -10dBu~ +20dBu; Compression ratio range:2~32: 1; Soft and hard inflection point: 0~100% start time:0.1ms~1000ms; Release time: 10ms~15000ms Gain compensation:Maximum 12dB |
| Peak limiter | Threshold range: -10dBu~ +20dBu Start-up time: 1ms~1000ms; Release time: 10ms~3000ms |
| Hard limiter | Threshold range: -10dBu~ +18dBu |
| Delay | The adjustable delay time of each input channel + output channel is 452ms, Step accuracy 0.0104ms (10.4us) |
| FIR filter | Each input channel and output channel can import FIR filter with 48kHz sampling rate and 512 taps |
