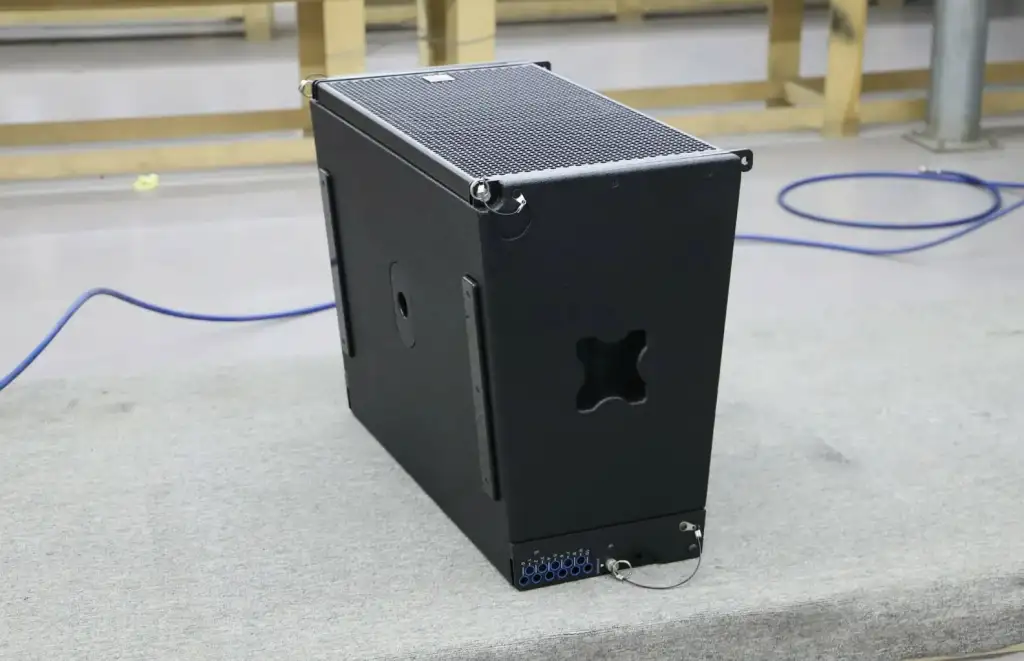

Z SOUND LC12 [PAIR]

• FREQUENCY RESPONSE70 Hz ~ 16 kHz (± 3dB) 60 Hz ~ 18 kHz (-10dB)
• Nominal Coverage (-6dB)100° Horizontal 10° Vertical
• Sensitivity (@1W/1M)HF/LF: 112 dB SPL / 100 dB SPL
• Nominal Impedance16 ohm
• Maximum SPLHF: 137 dB SPL peak
• Drivers1 × 12" woofer (75mm voice coil) 1 × 3" compression driver (75mm voice coil)
• Dimensions (HxWxD)360 × 700 × 550mm
• Weight29 kg
• Connectors2x NL4 connectors
• Speaker Cables1+1- ..· 2+2-
• Materials15mm 18mm Baltic birch plywood
• FinishBlack polyurea paintings
• GrilleBlack epoxy mesh grille with acoustically reticulated cloth
• RiggingAdjustable from 0 to 10° in 1, 2, 3, 4, 5, 6, 7, 8, 9, 10° increments

Applications
Conference Room
Theatre, Multi-Function Hall
Church
Features
HF and LF coaxial structure
Neodymium HF driver
Wear-resistant painting
Technical Specification
Frequency Response:
70 Hz ~ 16 kHz (± 3dB)
60 Hz ～ 18 kHz (-10dB)
Nominal Coverage (-6dB): 100° (H) x 10° (V)
Sensitivity (@1W/1M): HF/LF: 112 dB SPL / 100 dB SPL
Peak Power: HF/LF: 320W/1600W
Nominal Impedance: 16 ohm
Maximum SPL:HF: 137 dB SPL peak
Drivers:
1 × 12" woofer (75mm voice coil)
1 × 3" compression driver (75mm voice coil)
Physical Data
Dimensions (HxWxD): 360 × 700 × 550 mm
Weight: 29 kg
Connectors: 2xNL4 connectors
Speaker Cables: 1+1- ..· 2+2-
Materials: 15mm 18mm Baltic birch plywood
Finish: Black polyurea paintings
Grille: Black epoxy mesh grille with acoustically reticulated cloth
Rigging: Adjustable at 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10° degree
