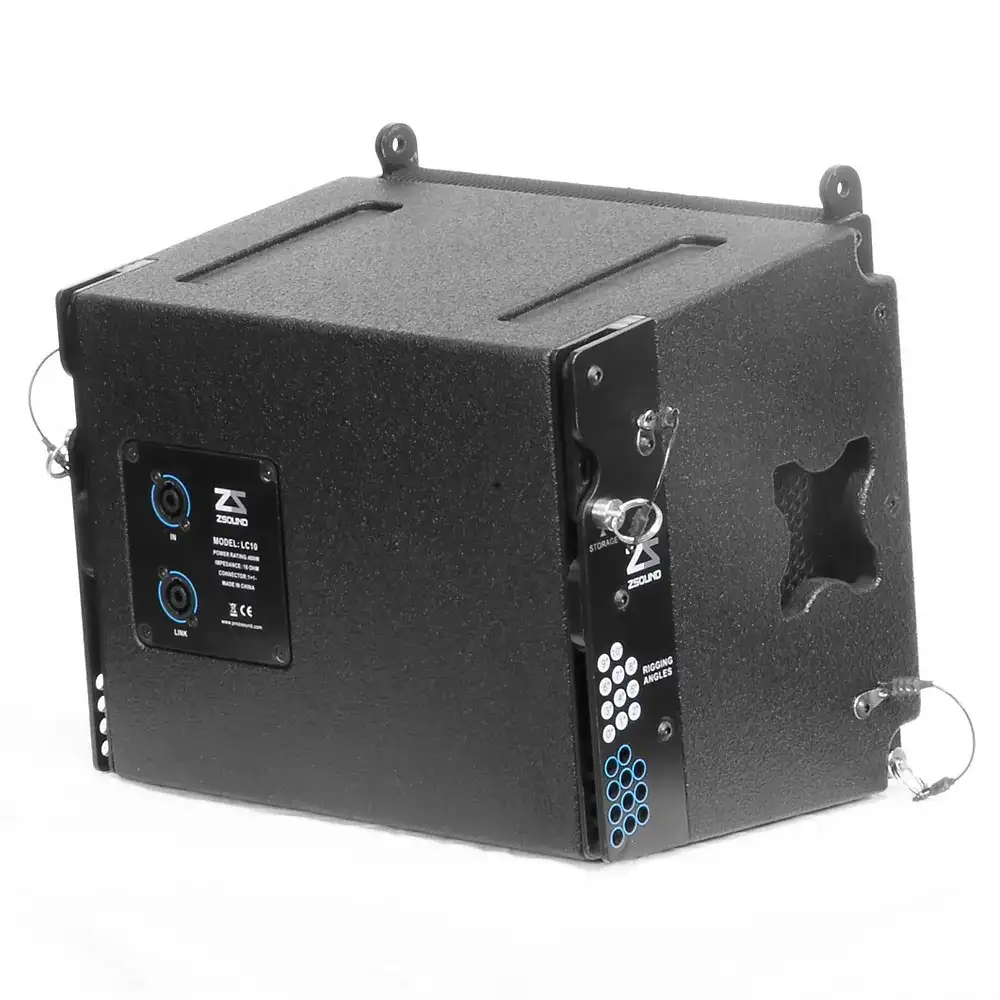

ZSOUND LC10[pair]

• FREQUENCY RESPONSE80 Hz ～ 18 kHz (± 3dB), 60 Hz ～ 20 kHz (-10dB)
• Nominal Coverage (-6dB)HF/LF: 112 dB SPL / 96 dB SPL
• Sensitivity (@1W/1M)HF/LF: 112 dB SPL / 96 dB SPL
• Nominal ImpedanceHF/LF: 16 ohms
• Maximum SPLHF: 137 dB SPL peak, LF: 134 dB SPL peak

Applications
Touring performance
Club and multi-function hall
Church
Features
The most cost-effective small and medium-sized line array system
Extremely compact with a lightweight design, only 13 kgs
High SPL and great dynamic headroom for powerful audio performance
Multi-angle adjustable mounting mode for versatile installation options
Technical Specifications
Frequency Response: 80 Hz ～ 18 kHz (± 3dB), 60 Hz ～ 20 kHz (-10dB)
Nominal Coverage: 100° Horizontal, 10° Vertical
Sensitivity (@1W/1M): HF/LF: 112 dB SPL / 96 dB SPL
Peak Power: HF/LF: 320W/1400W
Nominal Impedance: HF/LF: 16 ohms
Maximum SPL: HF: 137 dB SPL peak, LF: 134 dB SPL peak
Drivers: LF 1x10" woofer (75mm voice coil), HF 1x3" compression driver
Physical Data
Dimensions (HxWxD): 332 × 360 × 260mm
Weight: 13 kg/28.6 lbs
Connectors: 2 x NL4 connectors
Speaker Cables: 1+1-
Materials: 15mm, 18mm Baltic birch plywood
Finish: Black Polyurea paint
Grille: Black epoxy mesh grille with acoustically reticulated cloth
Rigging: 0 to 10-degree adjustable
