ZSOUND P10 (Pair)
About ZSOUND P10 (Pair)

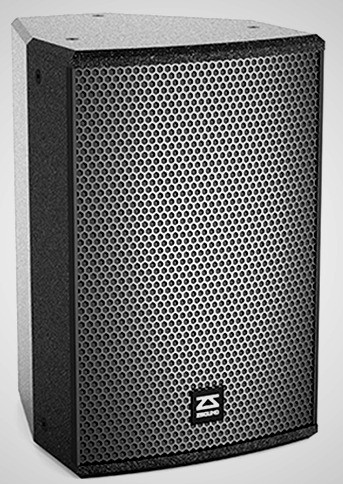

ZSOUND P10
- FREQUENCY RESPONSE70 Hz - 18 kHz (±3 dB) / 55 Hz - 20 kHz (-10 dB)
- Sensitivity (@1W/1M)95 dB SPL
- Power Rating (AES)350W
- Nominal Impedance8 ohm
- Maximum SPL126 dB (peak)
- Dimensions (HxWxD)486x316x338mm / 19"x12"x13"
Features
Special Frequency Response Design: Minimizes auditory fatigue.
Rotatable and Asymmetrical Horn: Provides flexible sound direction.
13x M8 Rigging Points: Allows for versatile installation options.
Pole Mount Socket: Enables easy stage monitor setup.
Technical Specifications
Frequency Response: 70 Hz - 18 kHz (±3 dB) / 55 Hz - 20 kHz (-10 dB)
Sensitivity (@1W/1m): 95 dB SPL
Power Rating (AES): 350W
Nominal Impedance: 8 ohm
Maximum SPL: 126 dB (peak)
Drivers:
LF: 1 × 10" (75mm voice coil) woofer
HF: 1 x 44mm voice coil compression driver
Physical Data
Dimensions (HxWxD): 486x316x338mm / 19"x12"x13"
Weight: 19 kg / 42 lbs
Connectors: 2 x NL4MP Neutrik Speakon connectors
Speaker Cables: 1+ 1-
Materials: 18mm, 24mm birch plywood
Finish: Black polyurea paintings
Grille: Black epoxy mesh grille with acoustically reticulated foam
